HD Demos

Download HD demos and get started.

BrightSign HD Demos

Download demo presentations to see BrightSign HD’s capabilities.

Instructions

  • Download the published presentation file (Ensure that the presentation is compatible with your BrightSign model)
  • Unzip the file and copy the entire contents onto an MicroSD card
  • Insert the MicroSD card into your BrightSign unit and apply power
  • To make changes to the presentation, download the source file and use BrightAuthor to open the *.bpf project file included with the demo

Demos and Presentations

Explore our list of application demos and presentations below and download them to get started.

Covid-19 Alert

This is a presentation to keep customers informed and alert during an emergency. It includes an image background, live image feed, a video zone, and image zone for the logo and a news ticker.

Requirements:

  • HD224 or higher player
  • Internet connection for the live feeds

Download Published Presentation and Source Files

4K Zoo Presentation

This is a presentation for a zoo and includes a 4K video zone background layer, an animated HTML5 zone, and an image zone with touch screen interactivity to select the video playback in the background video zone.

Requirements:

  • HD1034 with firmware v7.1.95 or higher
  • 4K or 1080p60 Touch Screen

Download Published Presentation and Source Files

Museum Touch Exhibit

This presentation includes an image background layered with a 1080p60 video zone, two animated HTML5 zones, and an image zone with touch screen and/or BP200 interactivity to select the video playback in the main video zone.

Requirements:

  • HD1033 with firmware v6.2.38 or higher
  • 1080p60 Touch Screen

Download Published Presentation and Source Files

Museum Touch Published Files

Brewery Menu Presentation

Red Dot Digital Media designed presentation demonstrating a menu board with a 1080p60 video background and Live Text overlay. The menu items can be edited with the BrightSign App.

Requirements:

  • BrightSign HD223 or HD1023 with firmware v6.2.38 or higher
  • 1080p60 display
  • MicroSD Class 10 memory card containing the published presentation

Download Published Presentation and Source Files

Medical Center Touch Kiosk

This is a touch interactive presentation for a medical center and also showcases a Screenfeed Spectrum Weather feed. Touch a button for each floor to view the map of services.

Requirements:

  • HD1023, HO523, XD1033 or XT1143 running firmware version 6.2.147 or higher
  • 1920×1080 @60p touch screen

Download Published Presentation and Source Files

Car Dealership Touch Kiosk

This presentation is an example of a car dealership touch kiosk to select car model videos to play back.

Requirements:

  • BrightSign HD1022 running ver 6.0.25+ firmware or HD1023 running ver 6.2.38+ firmware
  • 1080p60 touch screen

Details:

  • Operation: Touch the buttons on the bottom to playback a video for each option
  • Key Features: multi-zone, 1080p60 video, touch screen interactive

Download Published Presentation and Source Files

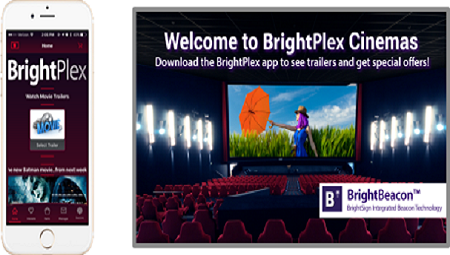

BrightPlex BrightBeacon

The BrightPlex demo is an example presentation showcasing the 2-way interactive BTLE and location-based capabilities of BrightSign’s BrightBeacon technology. Using a mobile device with the BrightPlex iOS app, users can control the playback of the BrightPlex demo to select and play movie trailers of their choice.

This example presentation and associated iOS app were built by Sophatar using the BrightBeacon application template. Click on ‘Downloads’ below to download this template and develop your own solution.

Requirements:

BrightSign Series 3 XT, XD, HD, HO or LS player with:

    • Unreleased version of firmware – please email jduval@brightsign.biz
    • Wifi/Bluetooth module installed or USB BTLE dongle inserted
    • MicroSD card with published BrightPlex demo
    • Secondary beacon “puck” (Such as radbeacon dot)
    • Programmed to: UUID: 775d1459-ac68-3064-f9c3-392dfa8d6b19
      Major: 11
      Minor: 103
    • iOS device running BrightPlex app
    • 1080p screen

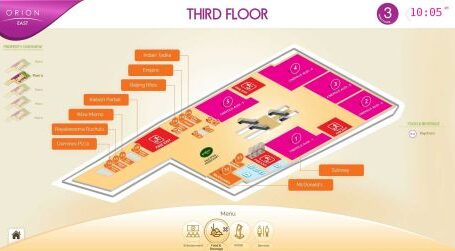

Mall Wayfinder Presentation

This mall wayfinder presentation was created by Invincy as a touch interactive map. Select a floor map on the left and then a category of services to highlight using the buttons along the bottom of the screen.

Requirements:

  • HD1023 running firmware v6.2.45 or higher
  • 1080p60 touch screen

Download Published Presentation and Source Files

Retail Multi-Interactive Demo

This retail presentation showcases a main image and supports three types of interactivity to trigger video playback of a specific product: GPIO buttons, touch screens and BP200 button panels. The BP200 button panel LEDs are programmed to blink when idle and stay on when playing the video. This demo has no audio.

Operation:

  • Touch screen: touch a model to play a video. Touch again to return or wait for the video to end.
  • BP200: LEDs will blink on the main screen. Tap button 1, 2 or 3 to play the corresponding video for each model. The LED for each button will remain on during video playback.
  • GPIO button: Tap button 0, 1, or 2 to play the corresponding video for each model.

Requirements:

  • BrightSign HD1032 with firmware v6.2.94 or higher
  • At least one interactive device: USB Touchscreen, BP200 Button Panel and/or 3 GPIO button device
  • 1080p60 display
  • Micro SDHC Class 10 memory card containing the published Presentation

Download Published Presentation and Source Files

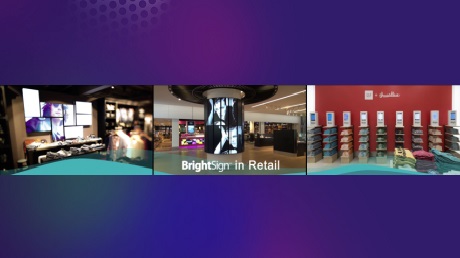

Retail Fashion Presentation

A portrait fashion presentation that showcases multi-zone playback of video and images with transitions.

Requirements:

  • HD223 player with firmware v6.2.45 or higher
  • 1080p60 display

Download Published Presentation and Source Files

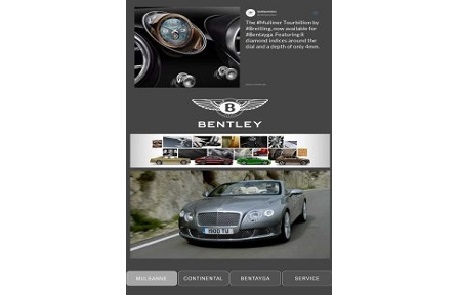

Portrait Car Dealership Kiosk with Social Media

A portrait orientation Car Dealership touch kiosk with the addition of a live streaming social media feed provided by TINT.

Requirements:

HD1023

  • Firmware v6.2.45 or higher
  • Network setup as standalone
  • 1080p60 touch screen
  • Internet connection for social media feed

Download Published Presentation and Source Files

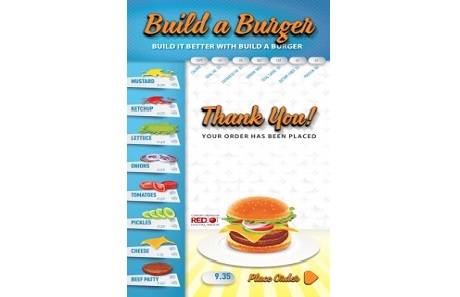

Build-A-Burger Presentation

A Fully HTML5 touch order kiosk presentation designed and built by Red Dot Digital Media. Select ingredients to add to your custom burger, watch the burger animate on screen as it builds and calculates the price and nutrition information.

Requirements:

  • HD1023
  • 1080p touch screen

Download Published Presentation and Source Files

Legacy HD600/HD2000 Demos

Explore our legacy application demos and presentations below and download them to get started.

Standard Definition Demos

Main Menu starting image with four sections to select from using a touch screen, button board, or mouse. Selecting a section allows a user to view that section’s videos or slideshows
HD600 Demo

High Definition Video Demos

  • SolidLights 720p Demo (111MB) – Runs on HD2000 only. Plays an attract 720p video clip that launches into full 720p video with mouse, button board, or touch screen interaction.
  • SolidLights 1080i Demo (90MB) – Runs on HD2000 only. Plays an attract 1080i video clip that launches into full 1080i video with mouse, button board, or touch screen interaction.
  • Comix Tours Demo (56MB)

Download Published Presentation and Source Files

3x1 BrightSign Video Wall

This video wall presentation plays 3 separate landscape 1080p60 videos in sync. The left screen is the master unit, which sends a “GO” link command via Ethernet to the middle and right screens. Enhanced sync has also been enabled under File > Presentation Properties > Interactive to ensure frame accurate synchronization between all three screens.

Requirements:

  • Quantity of 3 BrightSign HD222, HD1022, XD232, XD1032 or XD1132 – each playing the presentation for their respective screen (left, middle and right)
  • HD2 Firmware version 5.1.33 or higher; XD2 firmware version 5.1.40 or higher
  • Quantity of 3 SDHC Class 10 memory card containing the published presentations for each of the 3 screens
  • Quantity of 3 landscape screens supporting 1080p60 resolution
  • Ethernet switch
  • 3 Ethernet cables connecting each of the 3 BrightSign units to the switch
  • No Internet connection required.

Download Published Presentation and Source Files

Legacy HD222/HD1022 Demos

Explore our legacy application demos and presentations below and download them to get started.

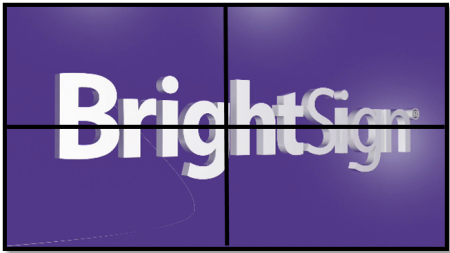

BrightWall 2x2 Video Wall Presentation

This presentation showcases a 2×2 video wall using a single video and displaying it across all four screens using BrightWall.

Requirements:

  • BrightSign HD222 or HD1022 players with firmware version 5.1.16 or higher
  • Ethernet switch – plug all four BrightSign players into this switch so that they can synchronize with each other
  • SDHC Class 10 memory cards containing the published presentations
  • 1080p60 displays
  • To edit the BrightWall file, you must open BrightAuthor first, select the ‘Create’ tab and ‘BrightWall’. Then select the provided ‘HD2-BrightWall.bvw’ file.

Download Published Presentation and Source Files

Retail Interactive Kiosk

This retail presentation showcases a main image and supports three types of interactivity to trigger video playback of a specific product: GPIO buttons, touch screens and BP200 button panels. The BP200 button panel LEDs are programmed to blink when idle and stay on when playing the video. This demo has no audio.

Operation:

  • Touch screen: touch a model to play a video. Touch again to return or wait for the video to end.
  • BP200: LEDs will blink on the main screen. Tap button 1, 2 or 3 to play the corresponding video for each model. The LED for each button will remain on during video playback.
  • GPIO button: Tap button 0, 1, or 2 to play the corresponding video for each model.

Requirements:

  • BrightSign HD1032 with firmware v6.2.94 or higher
  • At least one interactive device: USB Touchscreen, BP200 Button Panel and/or 3 GPIO button device
  • 1080p60 display
  • Micro SDHC Class 10 memory card containing the published Presentation

Download Published Presentation and Source Files
