XT Demos

Download XT demos and get started.

BrightSign XT Demos

Download demo presentations to see BrightSign XT’s capabilities.

Instructions

  • Download the published presentation file (Ensure that the presentation is compatible with your BrightSign model)
  • Unzip the file and copy the entire contents onto a MicroSD card
  • Insert the MicroSD card into your BrightSign unit and apply power
  • To make changes to the presentation, download the source file and use BrightAuthor to open the *.bpf project file included with the demo

Demos and Presentations

Explore our broad list of application demos and presentations below and download them to get started.

Live TV Corporate Presentation

This presentation features Live TV playback via the HDMI 2.0a input, dual video decoding and an HTML5 swipe carousel.

Requirements:

  • BrightSign XT1143 model with firmware version 6.2.38 or higher
  • MicroSD Class 10 memory card with the published demo
  • 1080p60

Download Published Presentation and Source Files

Live TV Corporate PublishedHDMI In ESPN Video PublishedLive TV Corporate Source

Restaurant Lbar Presentation

This presentation features Live TV video from the HDMI input and a Lbar shaped HTML zone with animating images and messages.

Requirements:

  • BrightSign XT1143 model with firmware version 6.2.38 or higher
  • MicroSD Class 10 memory card with the published demo
  • 1080p60 display

Download Published Presentation and Source Files

Lbar PublishedLbar Project

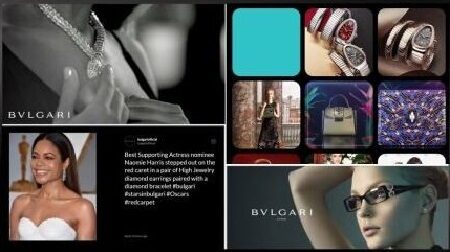

Dual HTML5 Social Media Presentation

This four-zone screen layout presentation showcases video, image and two HTML5 zones playing at once. The two HTML5 zones play different real-time animated TINT social media feeds.

Requirements:

BrightSign XT1143 model firmware version 6.2.38 or higher

  • MicroSD Class 10 memory card with the published demo
  • 1080p60 display
  • Internet connection for TINT social media feeds

Download Published Presentation and Source Files

HTML5 Social Media Presentation PublishedHTML5 Social Media Presentation Project

BrightPlex BrightBeacon

The BrightPlex demo is an example presentation showcasing the 2-way interactive BTLE and location-based capabilities of BrightSign’s BrightBeacon technology. Using a mobile device with the BrightPlex iOS app, users can control the playback of the BrightPlex demo to select and play movie trailers of their choice.

This example presentation and associated iOS app were built by Sophatar using the BrightBeacon application template. Click on ‘Downloads’ below to download this template and develop your own solution.

Requirements:

BrightSign Series 3 XT, XD, HD, HO or LS player with:

  • Unreleased version of firmware – please email jduval@brightsign.biz
  • Wifi/Bluetooth module installed or USB BTLE dongle inserted
  • MicroSD card with published BrightPlex demo
  • Secondary beacon “puck” (Such as radbeacon dot)
  • Programmed to: UUID: 775d1459-ac68-3064-f9c3-392dfa8d6b19
    Major: 11
    Minor: 103
  • iOS device running BrightPlex app
  • 1080p screen

Download Published Presentation and Source Files

BrightPlex PublishedBrightPlex ProjectBrightPlex Demo GuideBrightBeacon Dev App Template

Legacy 4K242/4K1042/4K1142 Demos

Explore our legacy application demos and presentations below and download them to get started.

4K Multi Select Presentation

This presentation showcases four different 4K presentations that demonstrate the benefits of BrightSign 4K players. Each can be launched from the main screen using a BP200 button panel, and descriptions of them are listed below.

1) HTML5 4K Price tag: plays full screen 40K60p video overlaid with animated HTML price tag. You can update price tag text with the BrightSign App.

2) H.265 vs. H.264: shows the video quality and bandwidth saving benefits of H.265 encoding.

3) 4K30p vs. 60p: shows the video quality difference between 4K30p (jittery) & 4K60p (smooth) playback

4) 10bit color vs. 8bit color: shows the video quality difference between 8bit color (color banding) and 10bit color (no color banding)

Note: This presentation MUST be played on a 4K60p screen.

Operation:

  • Button 1: press once to play the Price Tag demo, press again to return to the main screen
  • Button 2: press once to play the H.265 video quality comparison, press again to play the H.265 bandwidth saving comparison, press 3rd time to return to the main screen
  • Button 3: press once to play the 4K30p vs. 4K60p demo, press again to return to the main screen
  • Button 4: press once to play the 10bit vs. 8bit color demo, press again to return to the main screen

Requirements:

BrightSign 4K1042 or 4K1142

  • Firmware ver 5.1.54 or higher
  • Setup for standalone networking & connected to a network (only required for BrightSign App interactivity with Price tag presentation)
  • SDHC Class 10 card with the published presentation
  • BP200 connected to the USB port of the 4K player
  • 4K60p display
  • iOS device with BrightSign App installed

Download Published Presentation and Source Files

4K Multi Demo Published4K Multi Demo Source4K Multi Demo Network Setup Files

4K Basic Touch Presentation

This landscape 4K touch presentation has three touch points on the main screen, which each launch a full-screen 4K video. Touch anywhere on the full screen video to return to the main screen.

Requirements:

  • BrightSign 4K1042, or 4K1142 model with firmware version 5.1.37 or higher
  • SDHC Class 10 memory card with the published demo
  • 4K60p or 4K30p touch screen display

Download Published Presentation and Source Files

4K30p Touch Source4K60p Touch Source

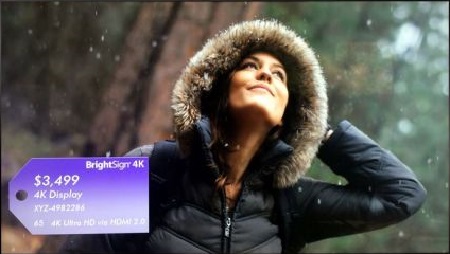

4K Price Tag Presentation

This landscape presentation showcases 4K full screen video with a price tag overlay fading from one side of the screen to the other. This presentation has UDP commands and Live Text which can be updated using the BrightSign App.

Requirements:

Networked BrightSign 4K242, 4K1042, or 4K1142 model

  • SDHC Class 10 memory card with the published demo
  • 4K60p or 4K30p display
  • iOS device with BrightSign App to interact with the demo
  • 4K player firmware version 5.0.27 or higher

Download Published Presentation and Source Files

4K30p Price Tag4K60p Price TagNetwork Setup Files4K Price Tag Source

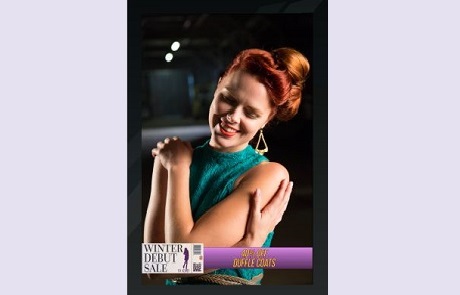

4K Portrait Retail

This presentation showcases dual video playback of one portrait 4K full screen video and one 1080p overlay video. The overlay video uses luma key technique to make the background transparent as it plays on top of the 4K video.

Requirements:

BrightSign 4K242, 4K1042, or 4K1142 model

  • SDHC Class 10 memory card with the published demo
  • 4K30p display
  • 4K player firmware version 5.1.37 or higher

Download Published Presentation and Source Files

4K30p Published Demo4K30p Source

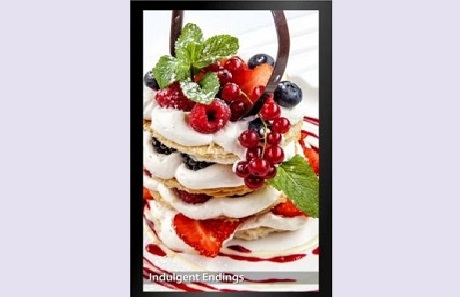

4K Portrait Restaurant Promotion

This presentation showcases portrait native 4K full screen video playback.

Requirements:

  • BrightSign 4K242, 4K1042, or 4K1142 model
  • SDHC Class 10 memory card with the published demo
  • 4K60p or 4K30p display
  • 4K player firmware version 5.0.22 or higher

Download Published Presentation and Source Files

4K30p Published Demo4K60p Published Demos4K30p Source
